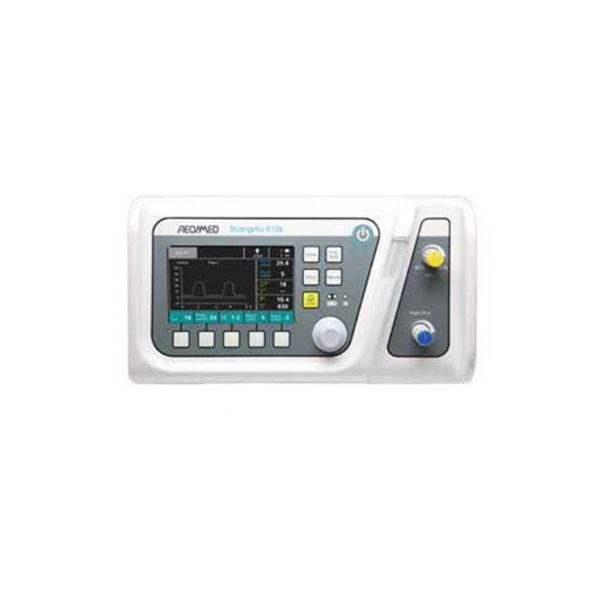

Аппарат ИВЛ Aeonmed Shangrila510S

Технические данные

Ventilation Modes

A/C-V with Sigh, A/C-P, SIMV-V, SIMV-P, SPONT/PSV, CPAP, MANUAL

Parameters

Tidal Volume

0~2000 ml

Respiration Rate

1~120 bpm (A/C mode)

1~40 bpm (SIMV mode)

I:E Ratio

1:10~4:1

FiO2

40%~100%

Trigger Sensitivity

Pressure trigger: -20~0 cmH2O

Flow Trigger:

2~30 L/min

PEEP

0~30 cmH2O

Monitoring

Pressure Value

Ppeak,PEEP

Volume / Flow Value

Vt, MV

Time Value

ftotal

Real Time Curves

Pressure-Time,Flow-Time

Alarms

Pressure Value

Paw high, Paw low, MV high, Gas supply down, No VT, FiO2 high, FiO2 low, Apnea, Continous pressure high / CP high, EX. power lost, O2 deficiency, Battery low

Technical Data

Supply Gas

O2, 0.25~0.6 MPa

Power Supply

AC100~240 V, 50 Hz/60 Hz, ≤65 VA

Screen Size:

5〞LCD Screen

Maximum Security Pressure:

≤8 KPa

Compliance:

≤4 ml /100 Pa

Dimension (WxDxH)

168 mm x 156 mm x 300 mm

Battery Operating Time:

Approx. 4.5H

Weight

3.2 kg (Main unit)

8 kg (Main unit & Accessories)

Features

• Waveform display and multi-parameter monitoring
• Electronically controlled PEEP
• Direct access to critical settings and patient data
• Acoustic and visual alarms
• Anti-crash design
• Operate with low flow oxygen supply

Multiple Ways of Power Supply

• Vehicle D/C power
• 4.5h long lasting internal battery
• A/C power adaptor
• External backup battery(optional)

Manual Intervention Functions

• Manual breath
• Inspiratory hold

Safty Guarantee

• Meets with EN1789 standard
• IPX4 waterproof level

Comprehensive Accessories

• Suction unit
• Hanging plate assembly
• 2.8L Oxygen cylinder kit
• Oxygen sensor

Integrated with Versatile Ventilation Modes

• Pressure control & Volume control mode
• Invasive & Non-Invasive ventilation
• SPONT/PSV, CPAP modes

Enhancements

• FiO2 40% to 100% continuously adjustable
• Waveform display: Pressure- time, Flow-time
• Alarm silence
• Pre-use test
