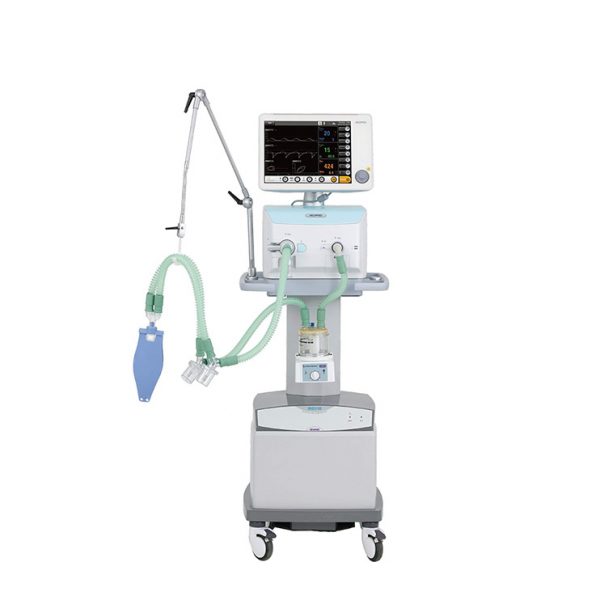

Аппарат ИВЛ Aeonmed VT5230

An Optimal Combination of Invasive and Noninvasive Ventilator

Наши квалифицированные сотрудники проконсультируют Вас по всем вопросам связанным с продукцией, стоимостью и срокам поставки

Технические данные

Ventilation Modes

Invasive

VCV(A/C), PCV(A/C), PRVC, SIMV(VCV)+PSV, SIMV(PCV)+PSV, SIMV(PRVC)+PSV, SPONT/ CPAP, BIVENT+PSV

Non-invasive

NIV/CPAP, NIV/PCV

Parameters

Tidal Volume

20~2500 ml

Respiration Rate

1~120 bpm

Tinsp

0.1~12 s

Tslope

0~2 s

Tpause

0~4 s

I:E Ratio

1:10~4:1

FiO2

21%~100%

Trigger Sensitivity

Pressure (-20~0 cmH2O, above PEEP)

Flow (0.3~20 LPM)

PEEP

0~50 cmH2O

Psupport

0~90 cmH2O

Pinsp

0~100 cmH2O

CPAP:

2~20 cmH2O

Esense:

5%~80%

Special Procedures

Special Procedures

Apnea Ventilation, Smart Suction, Manual Breath, Insp/ Exp Hold, ETCO2 Measurement, Nebulization, Waveform Freeze

Monitoring

Pressure Value

Ppeak, Pplat, Pmean, Pmin,PEEP

Volume / Flow Value

Vti, Vte, MV, MVespont

Time Value

ftotal,fspont, I:E, Tc

Real Time Curves

Pressure-Time, Flow-Time, Volume-Time waveforms

Pressure-Volume, Volume-Flow, Flow-Pressure loops

Gas Monitoring

FiO2, ETCO2

Calculated Values

Compliance(C)

Resistance(R)

MVleak

RSBI

WOB

PEEPi

P0.1

Vdaw

Alarm

Pressure Value

Paw high / low, MV high / low, Circuit disconnnect, FiO2 high / low, Expiratory tidal volume high / low, High Respiration Rate, Apnea, Power supply failure, Nebulizer On, Low Battery, Air supply down, O2 supply down

Technical Data

Screen

15〞TFT color touch screen (detachable)

Supply Gas

O2, Air: 0.28~0.6 MPa

Power Supply

AC100~240 V, 50 Hz/60 Hz

Communication Interface

RS-232 Port, Nurse call Port, Ethernet Port, CO2 Port

Dimension (WxDxH)

536 mm x 690 mm x 1425 mm (including the cart)

Weight

20 kg (Main Unit)

Invasive Ventilation

Monitoring

Non-invasive Ventilation

Lung Mechanics

Thoughtful Configure Solution
